UV Bandpass Filters

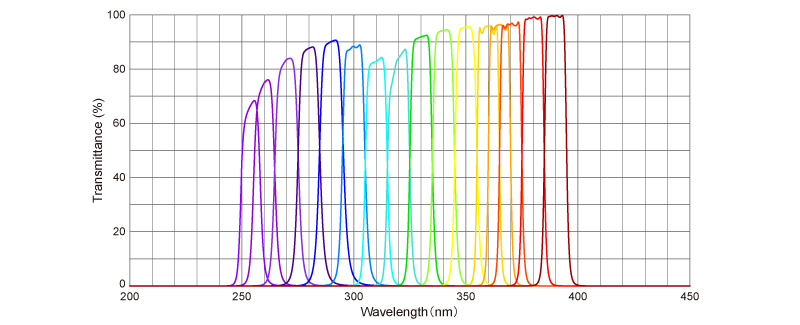

figure UV Bandpass Filters
Our UV bandpass filters are designed to have a narrow spectral band of UV and reject out-of-band wavelengths from 200nm to 1200nm.
Applications include spectral radiometry, medical diagnostics, chemical analysis, colorimetry, astronomy, and wherever spectral isolation is required.
Description CWL (nm) FWHM (nm) Min. Transmittance (%) Item#
25mm dia. 50 x 50mm
Bandpass Filter / 254nm 254 9 60 XBPA254 ZBPA254
Bandpass Filter / 260nm 260 10 70 XBPA260 ZBPA260
Bandpass Filter / 270nm 270 10 75 XBPA270 ZBPA270
Bandpass Filter / 280nm 280 10 80 XBPA280 ZBPA280
Bandpass Filter / 290nm 290 10 80 XBPA290 ZBPA290
Bandpass Filter / 300nm 300 10 80 XBPA300 ZBPA300
Bandpass Filter / 310nm 310 10 70 XBPA310 ZBPA310
Bandpass Filter / 320nm 320 10 75 XBPA320 ZBPA320
Bandpass Filter / 330nm 330 10 75 XBPA330 ZBPA330
Bandpass Filter / 340nm 340 10 85 XBPA340 ZBPA340
Bandpass Filter / 350nm 350 10 85 XBPA350 ZBPA350
Bandpass Filter / 360nm 360 10 85 XBPA360 ZBPA360
Bandpass Filter / 365nm 365 10 85 XBPA365 ZBPA365
Bandpass Filter / 370nm 370 10 85 XBPA370 ZBPA370
Bandpass Filter / 380nm 380 10 85 XBPA380 ZBPA380
Bandpass Filter / 390nm 390 10 85 XBPA390 ZBPA390
