Collimator Lens

The collimator lens achieves a square uniform illumination by connecting to a light guide.

• Uniformity is around 90%
• 3 choices of illuminated area size
• Focus is adjustable at any working distance

Telecentric Uniform Illumination Unit

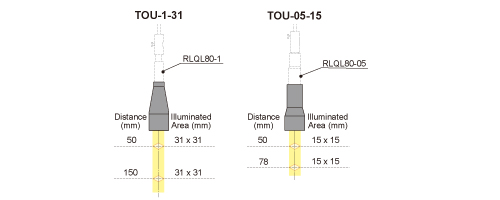

• Uniform illumination
• 2 choices of illuminated area size
• Light intensity is the same at any working distance

Movie Clip (YouTube)

Downward Illumination Unit

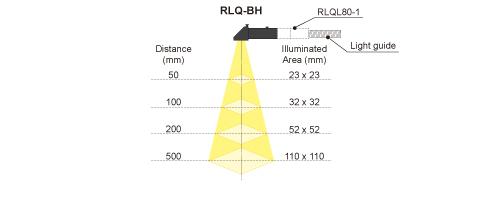

The downward illumination unit achieves a downward illumination by connecting to a collimator lens.
It is useful for a limited space.

• Uniformity is around 90%
• Focus is adjustable at any working distance

Light Guide Rod Unit

The light guide rod unit achieves a point illumination by connecting to a light guide.

• Quartz probe with high chemical resistance
• 2 choices of spot size
• Custom probe

PDF brochure Movie Clip - LGR6-150 (YouTube) Movie Clip - LGP2-30 (YouTube)

High Condensing Lens

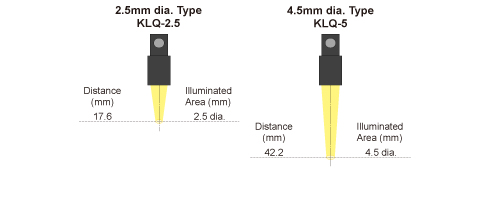

The high condensing lens achieves a high density illumination by connecting to a light guide.

• High power illumination in a small area
• 2 choices of illuminated area size

Direct Attachable Collimator Lens

The direct attachable collimator lens achieves a higher light intensity by connecting to a light source directry.

• Approximately 200% brighter than using the light guide
• Uniform illumination
• 2 choices of illumination method
• Focus is adjustable at any working distance

Light Guide

Asahi Spectra offers the light guide to be used with our light source for illuminating a desired point.

Custom Light Guide
