Quick check of transmittance with specific wavelength by a bandpass filter

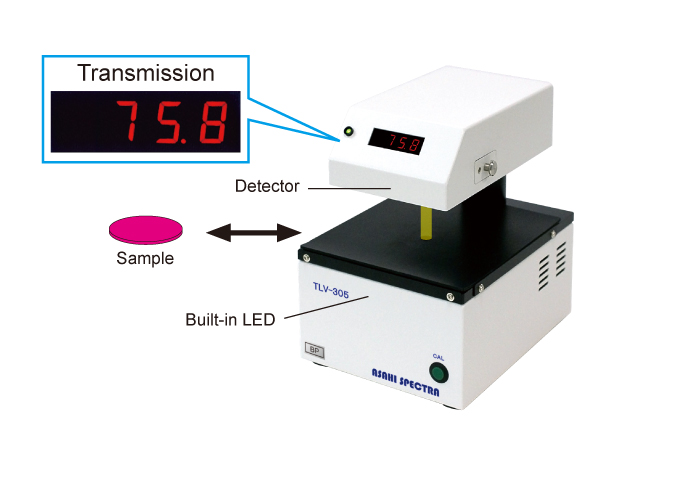

The TLV-305-BP is a compact transmittance meter.
This unit quickly measures the transmittance with specific wavelength by a bandpass filter.
It allows easy measurement by placing a sample after one-touch calibration.
It is suitable for a quick inspection process to conduct large volume of measurements.

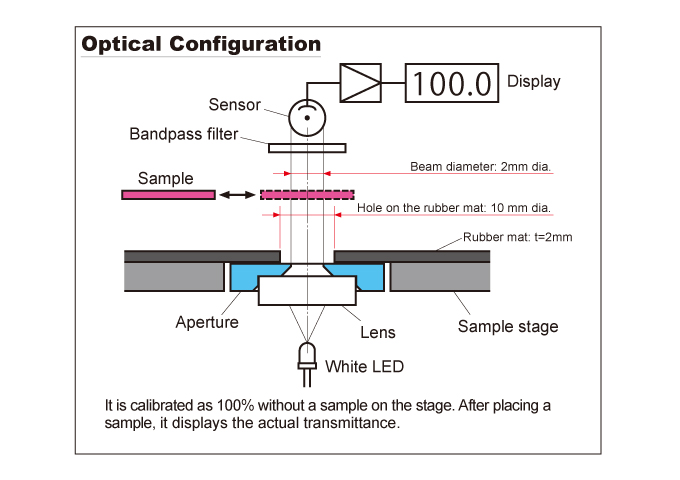

Stable measurement is achieved by separating a measurement light from an ambient light with pulse operation of the white LED.
It is possible to calibrate and get the transmission data by PC via RS485.

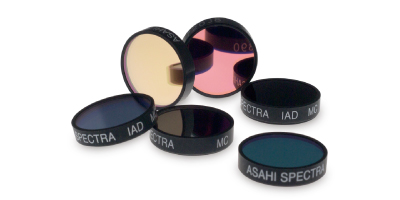

Specific measurement wavelength is selectable
by a bandpass filter.
CWL: 440-730nm / FWHM: 10nm / Size: 25mm dia.

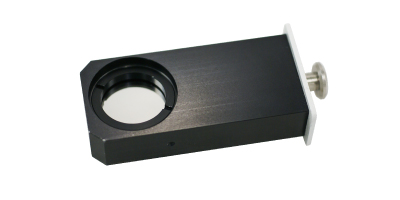

The additional filter holder makes it easier to
exchange bandpass filters.
| Model | TLV-305-BP |
|---|---|
| Output wavelength | 440 - 730nm * Specified by a filter |
| Spectroscopy device | Bandpass filter 25mm dia. |
| Light source | White LED |
| Display | 4 digit digital display (xxx.x) % |
| Measurement accuracy | Within ± 2% *1 |
| Measurement reproducibility | Within ± 0.5% |
| Beam diameter | 2mm dia. |
| Input voltage | AC100 - 240V 50/60Hz |
| (Input range: AC85 - 264V) | |
| Apparent power | Less than 7VA (AC100V/50Hz) |
| Remote control | RS485 *The cable is optional. |
| Control method | Built-in buttons or remote control by PC |
| (Dedicated software) | |
| Software operating environment | Windows 10, Windows 11 |
| (Supported language: Japanese/English) | |
| Safety mechanism | Built-in fuse Shutdown at AC input |
| overcurrent | |
| *Rating: 0.5A/250VAC, High breaking | |
| capacity, Time delay type | |
| 5mm dia. x 20mm | |
| Recommended environment | Temperature 10 - 35 deg C |
| Humidity less than 70% *Avoid condensation | |
| Dimensions | 150(W) x 204(D) x 211(H)mm |
| Weight | 2.6kg |
