Very bright, heatless, wavelength-selectable xenon light source

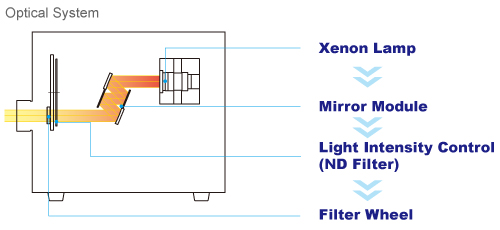

The MAX-351, 300W xenon light source, is the perfect illuminator with complete heat blocking design, using an originally designed mirror module.
The MAX-351 has all useful functions such as mirror module, filter wheel, ND variable control, timer, shutter and remote control.

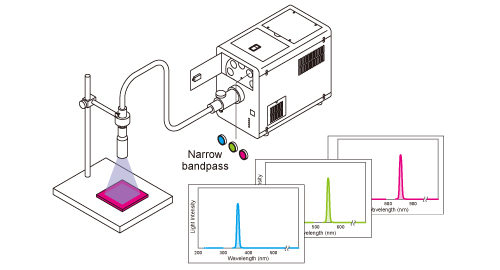

Monochromatic light output by optical filter

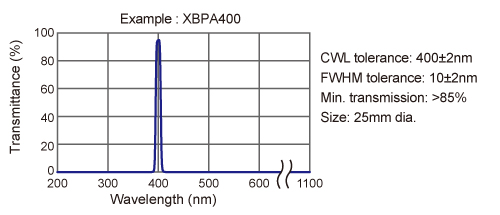

We offer a wide variety of narrow bandpass filters for a monochromatic illumination.
The output light from the MAX-351 is delivered to a desired direction by the light guide.
We also offer a multi-branch light guide for custom.
Each collimator lens is designed to provide the uniform illumination by using with the light guide.
The direct attachable collimator lens achieves a higher light intensity by connecting to a light source directly.
| Model | MAX-351 |
|---|---|
| Output wavelength | 250-1100nm *1 |
| Input voltage | AC100-240V ±10% 50 / 60Hz |
| Apparent power | 530VA or less *In case AC100V input / 50Hz |
| 520VA or less *In case AC240V input / 50Hz | |
| Lamp type | Xenon lamp 300W |
| Lamp life | 500h *2 |
| Lamp maintenance | Cartridge type (Alignment-free) |
| Cooling method | Forced air cooling |
| Functions | Shutter Open/Close, Timer function (1-99999s) |
| Light intensity adjustment (50-1000: continuously variable), | |
| Filter changer *3 | |
| Mirror module | UV: 250-385nm, UV-VIS: 300-600nm, VIS: 385-740nm, |
| IR: 750-1050nm, UV-IR: 250-1100nm *4 | |
| Control method | Controller or Remote control *5 |
| Communication port | RS485 (Dedicated cable) |
| Safety mechanism | Lamp off and warning lamp on when: |
| Lamp error, device operation error, cooling fan error, | |
| filter exchange door open, mirror module cover open, | |
| lamp cartridge is not installed, internal temperature is abnormal | |
| Shutdown at AC input overcurrent (Internal fuses) | |
| Recommended environment | Temperature 10-35 deg C |
| Humidity 70% or less * No condensation | |
| Dimensions | Main unit 196(W) x 330(D) x 294(H)mm *excluding protrusions |
| Controller 160(W) x 40(D) x 120(H)mm *excluding protrusions | |
| Weight | Main unit 13.0kg |
| Controller 1.0kg |
