Solar Simulator (300-1200nm)

product model HAL-321

HAL-321

High approximation of solar spectrum with AM1.5G, compact design and fiber illumination

Features

  • High approximation of solar spectrum
  • Built-in AM1.5G filter
  • Flexible illumination by light guide
  • Adjustable light intensity
  • Self-contained lamp and power supply
  • No need of optical axis alignment
  • External controller
  • RS232C remote control

Link & Download


Movie clips

HAL-320 Movie 1

Solar Simulator HAL-320

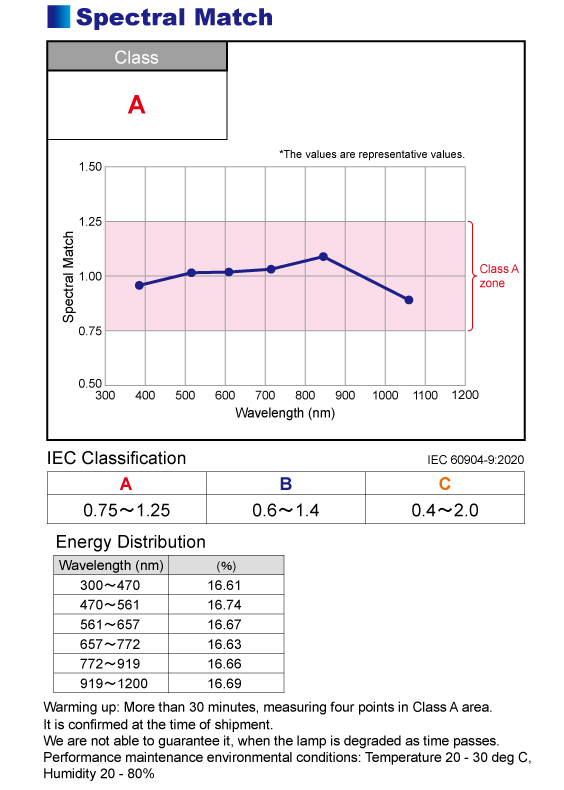

figure HAL-321 Spectral Match

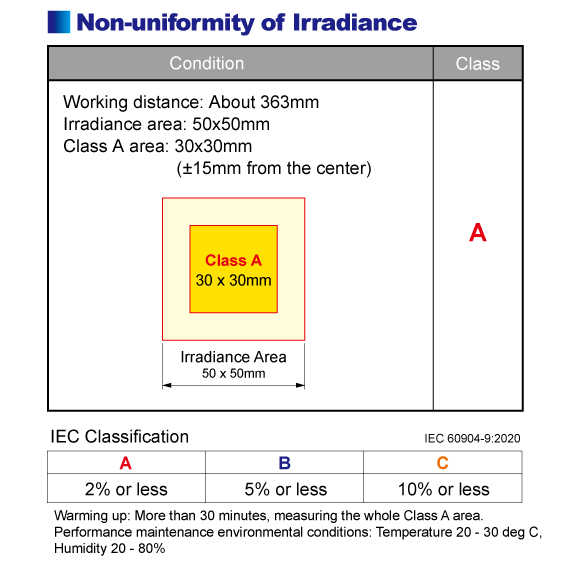

figure HAL-321 Uniformity

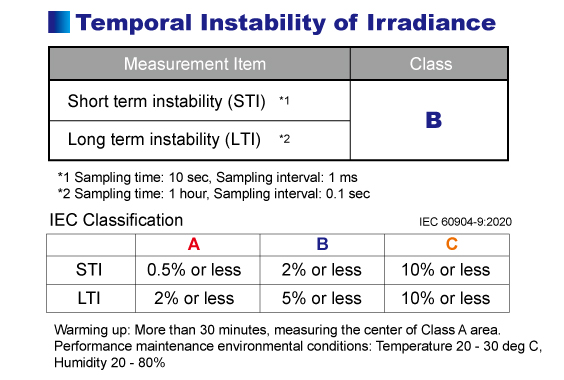

figure HAL-321 Temporal Instability
Flexible Configuration with Light Guide

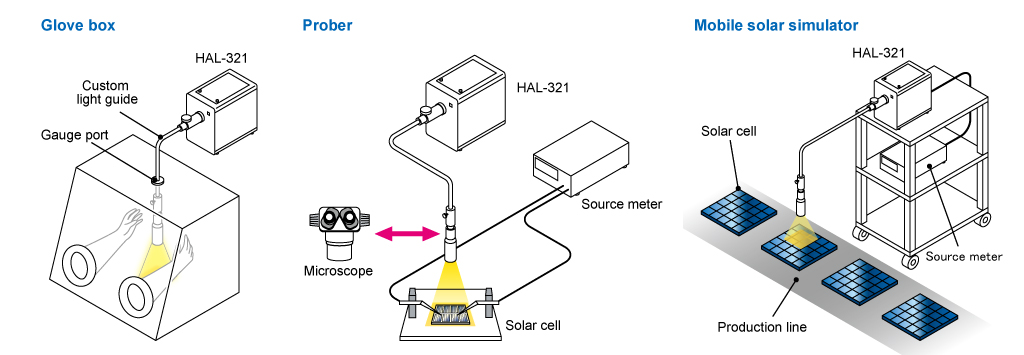

figure Flexible Configuration with Light Guide
Solar Simulator for Various Inspection and Research
figure Solar Simulator for Various Inspection and Research
product Stand for Collimator Lens
Stand for Collimator Lens

This mounting system offers superior stability and versatility.


product model CS-30
1 SUN Checker CS-20

1 SUN checker is used for checking the light intensity (1 SUN) of HAL-321. It is battery operated and portable.


product Light Guide (PVC)
Light Guide (TPO)

This light guide is the option for bringing a light into a glove box. The gauge port is equipped.


product Telecentric uniform illumination unit for RLQL80-1
Telecentric Uniform Illumination Unit

The telecentric uniform illumination unit achieves a parallel illumination by connecting to a collimator lens.


product High Condensing Lens
High Condensing Lens

The high condensing lens achieves a high density illumination by connecting to a light guide.

Model HAL-321
Output wavelength 300 - 1200nm
  *AM1.5G filter made by ASC is equipped as standard.
Lighting mode Continuous
Scope of application I-V measurement, irradiation test
Irradiance 1000W/m2 (1 SUN condition)
  *Confirmed with a reference solar device.
Max. AOI on irradiance area ≦15°
Input voltage AC100 - 240V±10% 50/60Hz
Apparent power 510VA or less (AC100V/50Hz)
  500VA or less (AC240V/50Hz)
Lamp type Xenon lamp 300W (UV)
Lamp voltage, current 14V, 21A (DC) *Representative value
Lamp control method Constant power control
Lamp life 500h *1
Optical axis alignment Cartridge type (Alignment-free)
Cooling method Forced air cooling
Functions Shutter, Timer, Lamp life *2, Light intensity control
  100-30 (steps) continuously variable
Remote control RS232C *The cable must be 3m or less.
Controller Remote controller
Safety mechanism Lamp turns off and warning lamp turns on:
    - Xenon lamp problem - Top door is open
    - Cooling fan problem - Temperature anomaly
  Circuit protector is used, shut off when AC input is overcurrent
Recommended environment Temperature 10 - 35 deg C
  Humidity 20 - 80% *Avoid condensation
Dimensions Main unit 200(W) x 300(D) x 292(H)mm
  Controller 160(W) x 37(D) x 99(H)mm
Weight Main unit 11.3kg
  Controller 0.6kg (including cable)
*1 Less than 1 year after delivery, under our condition.
*2 Count the lamp usage hours. (Unit: h)
