Solar Simulator (350-1100nm)

product model HAL-320


High approximation of solar spectrum with AM1.5G, compact design and fiber illumination


  • High approximation of solar spectrum
  • Built-in AM1.5G filter
  • Flexible illumination by light guide
  • Adjustable light intensity
  • Self-contained lamp and power supply
  • No need of optical axis alignment
  • External controller
  • RS232C remote control

Link & Download

Movie clips

HAL-320 Movie 1

Solar Simulator HAL-320

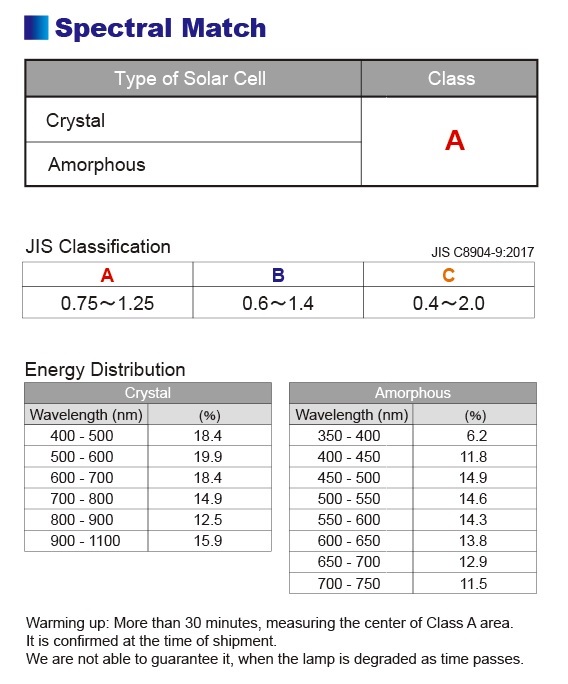

figure HAL-320 Spectral Match

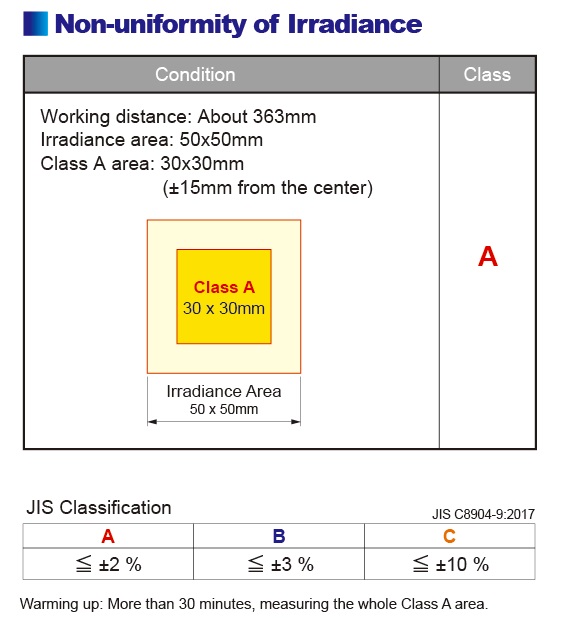

figure HAL-320 Uniformity

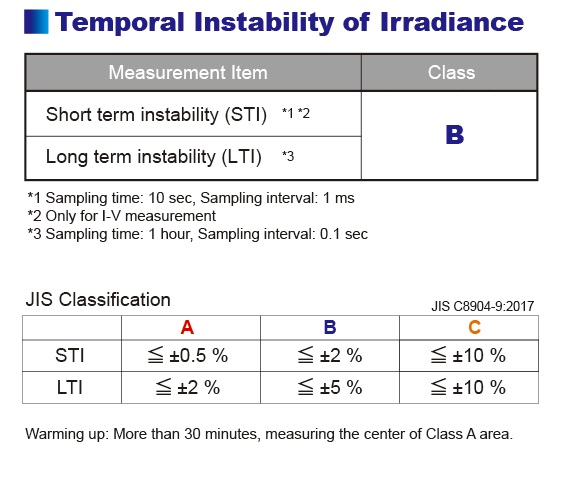

figure HAL-320 Temporal Instability

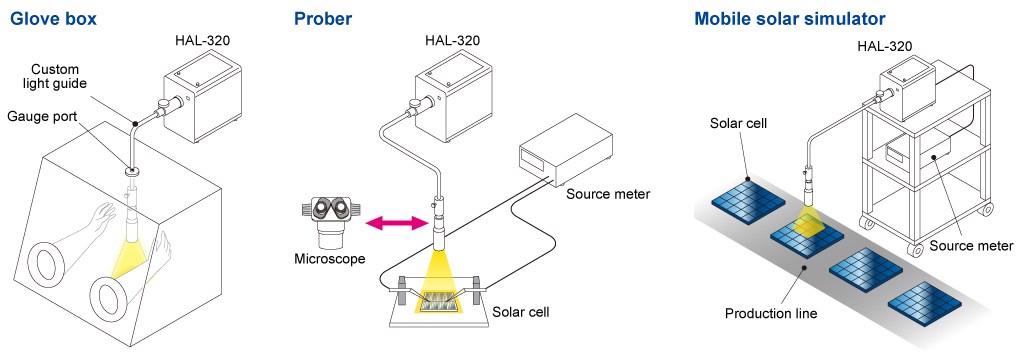

Flexible Configuration with Light Guide
figure Flexible Configuration with Light Guide

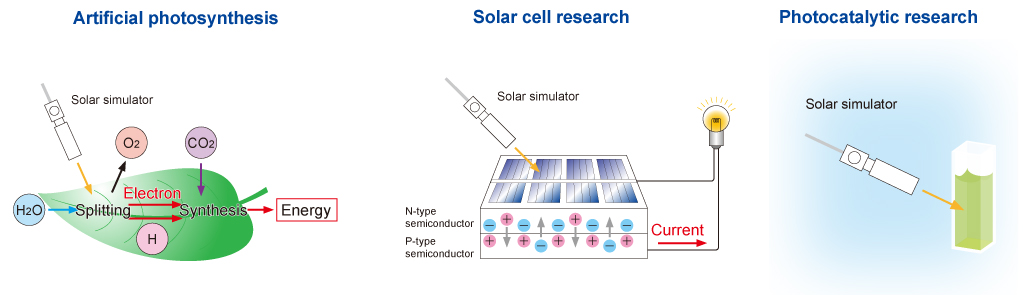

Solar Simulator for Various Inspection and Research
figure Solar Simulator for Various Inspection and Research
product Stand for Collimator Lens
Stand for Collimator Lens

This mounting system offers superior stability and versatility.

product model CS-30
1 SUN Checker CS-20

1 SUN checker is used for checking the light intensity (1 SUN) of HAL-320. It is battery operated and portable.

product Light Guide (PVC)
Light Guide (TPO)

This light guide is the option for bringing a light into a glove box. The gauge port is equipped.

product Telecentric uniform illumination unit for RLQL80-1
Telecentric Uniform Illumination Unit

The telecentric uniform illumination unit achieves a parallel illumination by connecting to a collimator lens.

product High Condensing Lens
High Condensing Lens

The high condensing lens achieves a high density illumination by connecting to a light guide.

Model HAL-320
Output wavelength 350 - 1100nm
Circuit method Switching power supply
Input voltage AC100 - 240V 50/60Hz (Input range: AC90 - 264V)
Apparent power Less than 510VA (AC100V/50Hz)
  Less than 500VA (AC240V/50Hz)
Lamp type Compact xenon lamp 300W
Lamp voltage, current 14V, 21A (DC) *Representative value
Lamp life 500h (Average)
Optical axis alignment Cartridge type (Alignment-free)
Cooling method Forced air cooling
Shutter Solenoidal drive
Exposure time set 0.5 - 99999.9sec
Light intensity control 100 - 30 (Steps)
  Continuously variable
Air Mass filter Air Mass 1.5G filter
Emitting method Bundled light guide
Controller Remote controller (Cable length=2m)
Remote control RS232C *The cable must be less than 3m.
Safety mechanism Xenon lamp problem, Top door is open,
  Lamp usage exceeds 500 hours,
  Cooling fan problem, Temperature anomaly
Recommended environment Temperature 10 - 35 deg C
  Humidity 20 - 80% *Avoid condensation
Dimensions Main unit 200(W) x 300(D) x 292(H)mm
  Controller 160(W) x 37(D) x 99(H)mm
Weight Main unit 11.3kg
  Controller 0.6kg (including cable)
