LED Light Source

product model FHL-102


LED Light Source


  • Rich lineup of LED heads
  • Adjustable light intensity
  • Timer function *Option
  • Attachable lens units
  • Filter holder *Option
  • Custom wavelengths
  • Long lamp life

Link & Download

CL-1501 brochure

Movie clips

CL-1501 Movie 1

LED light source CL-1501

CL-1501 Movie 2

Lens options

CL-1501 Movie 3

Timer unit CL-TCN1

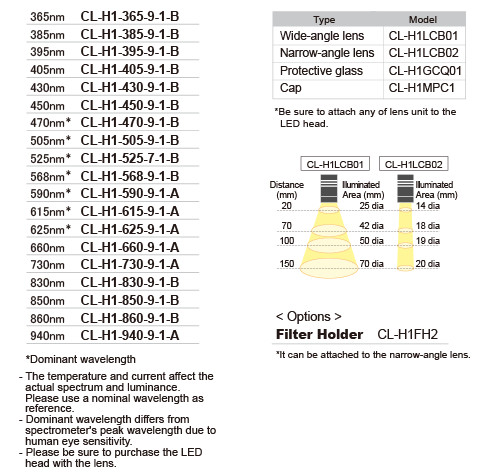

figure CL-1501 Configuration figure CL-1501 LED Lineup figure CL-1501 LED and Lends

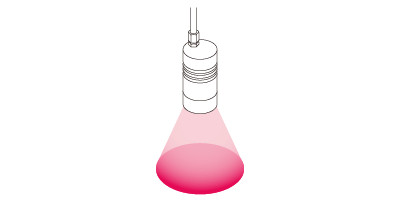

figure Wide-angle lens

Wide-angle lens

You can achieve a wide-range illumination.

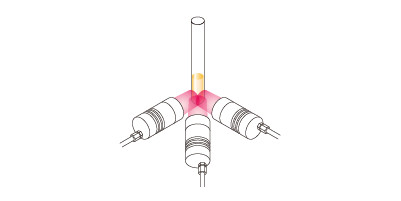

figure Narrow-angle lens
Narrow-angle lens

You can easily illuminate a sample from the side of a test
tube. It is also possible to increase the light intensity by
adding LED heads.

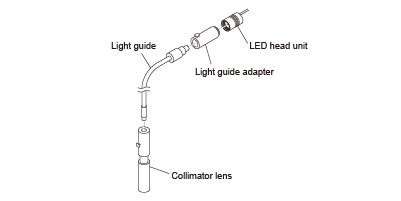

figure Uniform illumination
Uniform illumination

You can achieve an uniform illumination by connecting
the light guide and the collimator lens to the LED head
via the light guide adapter.

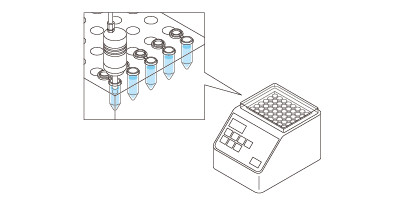

figure Light Guide Rod
Light guide rod

You can illuminate a sample in a micro tube via the light guide rod.

product Timer CL-TCN1
Timer CL-TCN1

It counts within the range of 99 hours 59 minutes 59 seconds.
You can choose countdown mode or countup mode.

Model CL-1501
Light control method Digital control 0-100
Output control method Constant current control
Number of outputs 1 channel
Maximum output current 350mA, 500mA, 700mA, 900mA
  *Auto-judge according to a connected LED head
External ON/OFF External ON/OFF control function*
Simultaneous control Daisy chain up to 8 units*
Supply voltage Power supply AC adapter
  Input: AC100-240V, 50/60Hz
  Output: 15V1.2A
Connector for LED heads D-sub 9 pin
Connector for daisy chain R03-R3F (Trigger OUT), R03-R3M (Trigger IN)
Recommended environment Temperature 5 - 35 deg C
  Humidity 20 - 75% *Avoid condensation
  For indoor use only
Cooling method Natural cooling
Dimensions 141(W) x 98(D) x 53(H)mm
Weight 430g
*A dedicated external device is required.
