UV Shortpass Filter (Blocking Range ~ 700nm)

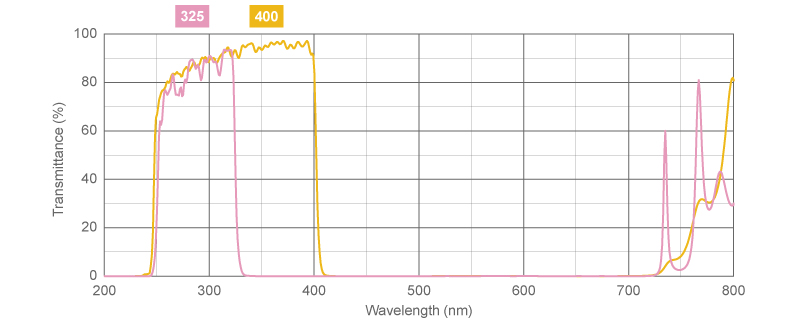

figure UV Transmission Filters
Unlike conventional UV filters coated by electron beam deposition, these UV shortpass filters fulfill higher transmission in passband, longer blocking range (~700nm), and environmental durability simultaneously just on monolithic fused silica substrates thanks to the state-of-the-art magnetron sputtering technology.
Description Cut-off (nm) Thickness (mm) Item#
25mm dia. 50x50mm
Shortpass Filter / UV 325nm 325 1 XUV0325 ZUV0325
Shortpass Filter / UV 400nm 400 1 XUV0400 ZUV0400
