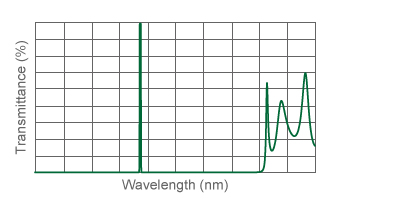

Laser clean-up filters are commonly used to isolate laser light while rejecting ambient light.
Thanks to the magnetron sputtering coating, the filters achieve >90% transmission with steep slopes and >4.0 optical density.
| Description | CWL(nm) | FWHM(nm) | Item# | ||
|---|---|---|---|---|---|
| 12.5mm dia. | 25mm dia. | 50x50mm | |||
| Laser Clean-up Filter / 488nm | 488 | 3.0 | WCL0488 | XCL0488 | YCL0488 |
| Laser Clean-up Filter / 514.5nm | 514.5 | 3.0 | WCL0514 | XCL0514 | YCL0514 |
| Laser Clean-up Filter / 532nm | 532 | 3.0 | WCL0532 | XCL0532 | YCL0532 |
| Laser Clean-up Filter / 632.8nm | 632.8 | 3.0 | WCL0632 | XCL0632 | YCL0632 |
| Laser Clean-up Filter / 785nm | 785 | 3.0 | WCL0785 | XCL0785 | YCL0785 |
| Laser Clean-up Filter / 808nm | 808 | 3.0 | WCL0808 | XCL0808 | YCL0808 |
| Laser Clean-up Filter / 830nm | 830 | 3.0 | WCL0830 | XCL0830 | YCL0830 |
