Monochromatic Illuminator System
Monochromatic Illuminator
Tuning wavelength from UV to IR with xenon light source and monochromator
Features
- Monochromatic illumination by 0.1nm interval from 250nm to 900nm. *Depends on configurations
- Resolution: 2.6nm~
- Adjustable light intensity
- Uniform illumination by collimator lens
- Remote control software *Option
Brochure
MAX-350 brochure
CMS-100 brochure
Movie clips
How to connect
MAX-303 and CMS-100
Tuning the wavelength

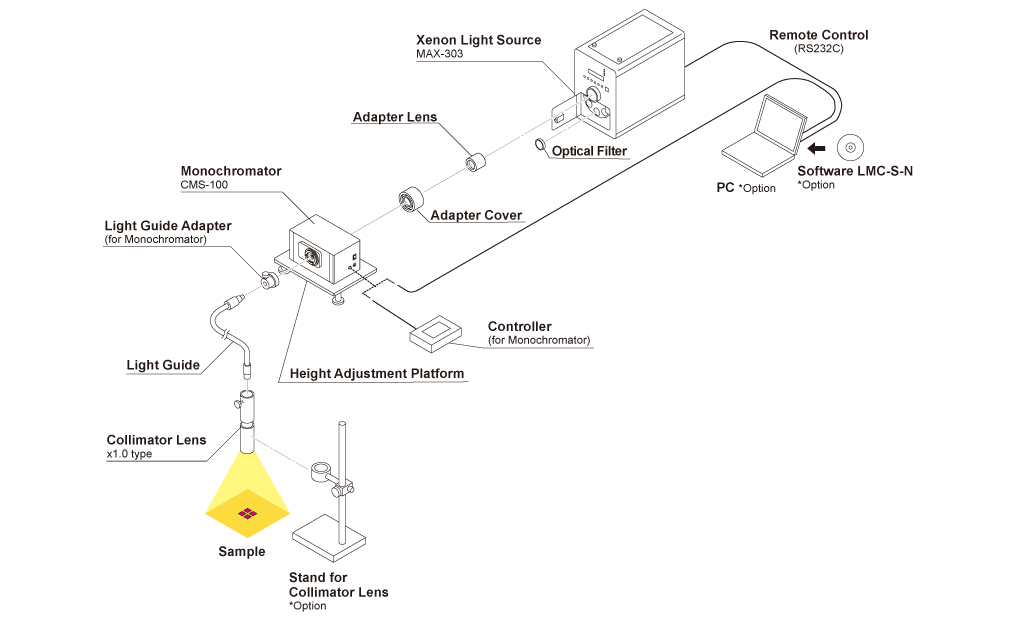

System Configuration Example
Measured Data

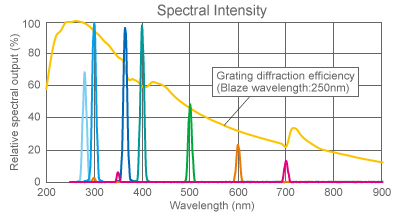

Light Intensity (Reference value)
| Wavelength (nm) | Light intensity (μW/cm²) | Mirror module |
|---|---|---|
| 320 | 221 | UV |
| 380 | 265 | |
| 400 | 287 | VIS |
| 550 | 158 | |
| 700 | 57 | |
| 800 | 39 | IR |
| 900 | 80 |
[Measurement condition]
Illuminated area : 20×20mm
Resolution : 8.6nm
Grating : 400nm 1200g/mm
Applications
- CCD characterization
- Photoisomerization
- Photocatalytic reaction

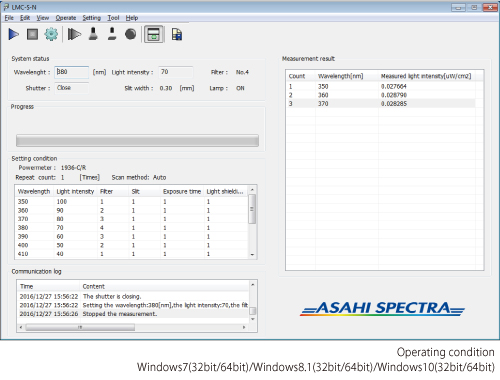

Software LMC-S-N
LMC-S-N enables to control both of a light source and a monochromator at the same time.
Other options are individual control and creating the same level of light intensity in a certain wavelength range.
Gratings
Select blaze wavelength when you ordering.
Light Guide
The illuminating light from the MAX-303 is delivered to the point of use by the light guide efficiently.
Collimator Lens
Collimator lens reduces the divergence of light from the light guide and provide uniform light output. It is suitable for directional backlighting which requires clear silhouette of an object.
