 High-power Xenon Light Source with Double 400W Lamps

product model MAX-400d
Output Spectrum of MAX-400D

It is approximately 400% higher in VIS range compared to MAX-350.

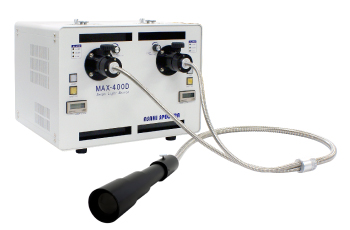

figure MAX-400D Overview

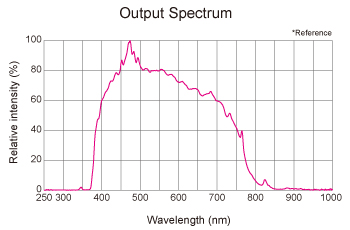

Output spectrum of MAX-400D
Bright light source for the following applications:
  • High speed camera
  • Evaluation of camera sensor
  • Image processing system
  • Microscope with high speed camera
  • Backlight illumination
product Multi-branch light guide
Multi-branch Light Guide

Output light from MAX-400D is delivered to a desired direction by the light guide.

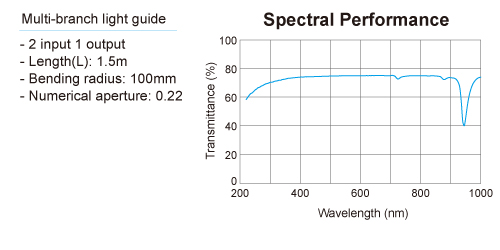

figure Multi-branch light guide
product RLQ collimator lens
Collimator Lens

Each collimator lens is designed to provide the uniform illumination by using with the light guide.

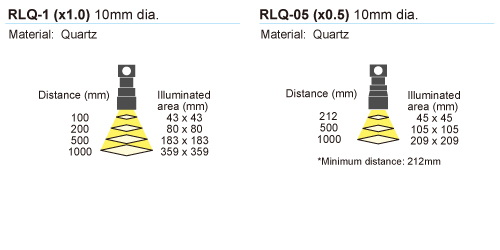

figure RLQ collimator lens
product Optical filter
Optical Filter

We offer a wide variety of optical filters. Please contact us for details.
Usable filters - Size: 50x50mm / Thickness: Less than 6mm

Model

MAX-400D

Output wavelength

400 - 700nm



(Super cold filter YSC0750 is equipped.)

Input voltage

AC100 - 240V±10% 50/60Hz

Apparent power

Less than 1360VA (AC100-240V, 50/60Hz)

Lamp type

Xenon lamp 400W (VIS) x 2 pcs

Lamp voltage, current

14.3V 28A(DC) *Representative value

Lamp control method

Constant-current system

Guaranteed lighting time

500h *Under our conditions, less than 1 year after delivery

Optical axis alignment

Cartridge type (Alignment-free)

Cooling method

Forced air cooling

Function

Shutter



Light intensity control (manual) *It can be decreased to about 30% assuming that the max. light intensity is 100%.



Lamp usage hour counter (unit: h)



Filter holder (50mm dia. or 50x50mm, t<6mm)

Remote control

RS-485

Safety mechanism

Spare fuse is installed, Overcurrent protection



Lamp turns off and warning lamp turns on:



Lamp anomaly / Top cover is open



Cooling fan problem / Temperature anomaly

Recommended environment

Temperature 10 - 35 deg C



Humidity 20 - 80% *Avoid condensation

Dimensions

390(W) x 341(D) x 292(H)mm

Weight

19.8kg
