 Halogen Light Source 100W

product model FHL-102
figure FHL-102 Spectral Output
Shutter Function
Light Control Function

The light intensity is mechanically controlled by the variable slit.
There is no change in color temperature.

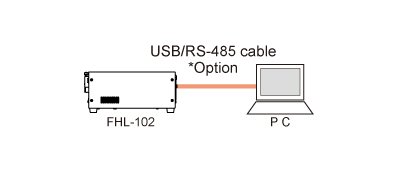

figure USB/RS-485 cable
RS-485 Remote Control

The FHL-102 can be controlled remotely by using USB/RS-485 cable.
You can control several units by daisy chain connection.

figure remote conrol example
figure telecentric backlight illumination
Telecentric Backlight Illumination

You can reflect the sample silhouette sharply by using the
telecentric uniform illumination unit as the backlight illuminator.

product Light Guide
Light Guide

The output light from the FHL-102 is delivered to a desired direction by the light guide.
We also offer a multi-branch light guide for custom.

figure Light Guide Spectral Performance
product Collimator Lens
Collimator Lens

The collimator lens achieves a square uniform illumination by connecting to a light guide.

  • Uniformity is around 90%
  • 3 choices of illuminated area size
  • Focus is adjustable at any working distance
figure Collimator Lens
product Telecentric uniform illumination unit for RLQL80-1
Telecentric Uniform Illumination Unit

The telecentric uniform illumination unit achieves a parallel illumination by connecting to a collimator lens.

  • Uniform illumination
  • 2 choices of illuminated area size
  • Light intensity is the same at any working distance
figure Telecentric uniform illumination unit for RLQL80-1
product Line Light Guide
Line Light Guide

The line light guide delivers light with the line shape.

product Ring Light Guide
Ring Light Guide

The ring light guide achieves a shadowless uniform illumination by illuminating from all directions.

product Filter Holder
Filter Holder

An optical filter can be mounted inside the unit with the filter holder.
*Size: 50x50mm / Thickness: Less than 6mm

Model

FHL-102

Output wavelength

from VIS to NIR

Input voltage

AC100 - 240V 50/60Hz



(Input range: AC90 - 264V)

Apparent power

Less than 170VA

Lamp type

Reflector halogen lamp 100W 12V100W (AL)

Lamp voltage, current

12V100W(DC) *Representative value

Lamp life

1000h (Average) *Not guaranteed

Cooling method

Forced air cooling

Functions

Shutter Open/Close: Solenoidal drive



Light intensity control: Variable slit

Control method

Built-in controller

Remote control

RS-485

Safety mechanism

Cooling fan problem, Lamp status monitor (RS-485)

Recommended environment

Temperature 10 - 35 deg C



Humidity 20 - 80% *Avoid condensation

Dimensions

155(W) x 280(D) x 131(H)mm

Weight

3.4kg
